The Ford 1.0 EcoBoost engine has earned both praise and frustration since its launch in 2012. If you own a Ford Fiesta, Focus, EcoSport, Puma, B-Max, or C-Max fitted with this three-cylinder turbocharged unit, you've probably already heard the horror stories. Some are overblown. Others are not. This guide from KSB AutoStyling breaks down every known problem, explains why each one happens, and gives you a clear path to fixing it before a minor annoyance becomes a four-figure repair bill.

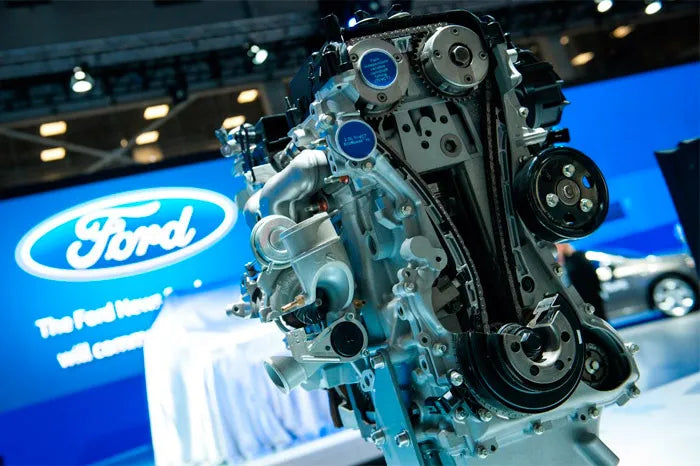

What Is the Ford 1.0 EcoBoost Engine?

Ford introduced the 1.0-litre EcoBoost as an award-winning three-cylinder turbocharged petrol engine designed to deliver the performance of a larger unit while cutting fuel consumption and CO2 emissions.

It has been available in several power outputs, typically 100 PS, 125 PS, and 140/155 PS, across a wide range of Ford models from 2012 onwards. The engine picked up the International Engine of the Year award for six consecutive years, so it clearly does a lot right. The problems below are real, but they affect a subset of engines rather than every unit rolling off the production line.

Common Ford 1.0 EcoBoost Engine Problems

Coolant Loss and Overheating

This is the big one. The most widely reported and most serious problem with the 1.0 EcoBoost is internal coolant leakage caused by a failure of the coolant hose connection to the cylinder head or, in more severe cases, a cracked or warped cylinder head degas chamber. Ford issued a Technical Service Bulletin (TSB 19-2346) and eventually an extended warranty programme for certain model years to address it.

Symptoms to watch for:

Coolant level is dropping with no visible external leak. The temperature gauge is creeping higher than normal, especially after motorway driving. White steam or a sweet smell from the exhaust. Misfires that worsen when the engine is warm.

Why it happened:

The original plastic degas bottle and associated hoses were prone to degradation. In some engines, the internal seal between the coolant channel and the cylinder failed over time due to thermal cycling, allowing coolant to seep into the combustion chamber or oil system.

The fix:

Ford released an updated coolant hose and degas bottle design. For engines with internal leakage, the repair can involve replacing the cylinder head gasket or, in worst cases, the entire cylinder head. If you catch coolant loss early and the head hasn't warped, the repair is relatively straightforward. If you ignore it, you risk catastrophic engine failure. Check your coolant level every fortnight at a minimum.

Turbo Failure and Boost Loss

Loss of power under acceleration is another frequently reported issue, particularly on Ford Focus and Fiesta models from 2013 to 2017. Drivers describe the car entering "limp mode" with a noticeable drop in performance, often accompanied by a check engine light.

Symptoms to watch for:

Sudden loss of power during overtaking or hill climbing. The engine management light is illuminating. A whistling or whining noise from the engine bay that changes character. Excessive oil consumption alongside reduced boost.

Why it happened:

The turbocharger wastegate actuator can seize, or its linkage can wear, leading to either over-boost or under-boost conditions. Carbon buildup on the wastegate valve is a contributing factor, particularly on cars used mainly for short journeys where the turbo rarely reaches full operating temperature.

The fix:

In many cases, the wastegate actuator arm needs freeing, cleaning, and lubricating. If the turbo internals are damaged (worn bearings, shaft play, cracked compressor wheel), a turbo replacement or professional rebuild is necessary. Running a quality fully synthetic oil and changing it at or before the recommended interval helps prevent premature turbo wear.

Timing Belt and Water Pump Failures

Unlike many modern engines that use timing chains, the Ford 1.0 EcoBoost relies on a timing belt. Ford originally recommended replacement at 150,000 miles or 10 years, but real-world failures have occurred well before that, especially on earlier production runs.

Symptoms to watch for:

A ticking or slapping noise from the front of the engine. Visible fraying or cracking if you can inspect the belt. Coolant is weeping from around the water pump area (the water pump is belt-driven on this engine). Any unexpected engine shutdown while driving.

Why it happened:

The original belt specification and water pump bearings didn't always hold up to the combination of heat and high RPM loads the turbo engine generates. A water pump bearing failure can take out the timing belt, and because this is an interference engine, belt failure typically means bent valves, damaged pistons, and an engine rebuild or replacement.

The fix:

Replace the timing belt and water pump together at no more than 125,000 miles or 8 years, whichever comes first. Many specialists now recommend a more conservative 100,000-mile or 7-year interval. Always use genuine Ford or OE-quality parts. This is not the place to save money on budget components. At KSB AutoStyling, we strongly advise keeping documentation of this service for resale value as well as peace of mind.

Misfires Under Load

The fault code P0300 (random misfire) and its cylinder-specific variants P0301, P0302, and P0303 appear frequently in diagnostic logs for the 1.0 EcoBoost. The misfire is most noticeable under load, during acceleration from low RPM, or when the engine is cold.

Symptoms to watch for:

Hesitation or juddering during acceleration. A rough idle that smooths out as the engine warms. The engine management light is flashing intermittently. Poor fuel economy without an obvious cause.

Why it happens:

Several factors contribute. The ignition coil pack can develop internal cracks, especially on higher-mileage cars. The spark plugs on a 1.0 EcoBoost work hard in a high-compression, turbocharged environment and degrade faster than on a naturally aspirated engine. Carbon deposits on the intake valves (a consequence of direct injection) can also interfere with the air-fuel mixture. In some cases, the fuel injectors themselves become partially blocked or develop spray-pattern issues.

The fix:

Start with the basics. Replace the spark plugs with the correct Ford specification plugs (gapped to factory settings) and inspect or replace the ignition coil pack. If the misfire persists, consider an intake valve carbon clean using walnut blasting or a professional chemical clean. Injector cleaning or replacement is the next step if diagnostics point to a fuelling imbalance. Running a tank of high-quality fuel with a reputable fuel system cleaner every 5,000 miles can help prevent carbon buildup in the first place.

Excessive Oil Consumption

Some owners, particularly those with 2013 to 2016 model year engines, report the 1.0 EcoBoost consuming oil at a rate higher than Ford's stated acceptable range (roughly 0.5 litres per 1,000 miles in the manufacturer's view, though many drivers consider anything above 0.25 litres per 1,000 miles excessive).

Symptoms to watch for:

Oil level is dropping between service intervals despite no visible leaks. Blue-tinged smoke on startup or during hard acceleration. A slightly rough engine note that improves briefly after topping up the oil.

Why it happened:

The piston rings and valve stem seals on earlier production 1.0 EcoBoost engines didn't always maintain an adequate seal under the specific thermal loads the engine generates. High-RPM driving habits and extended oil change intervals accelerate wear. Turbocharger oil seal degradation can also contribute, pushing oil into the intake tract.

The fix:

If oil consumption is mild, switching to the correct Ford-specified 5W-20 fully synthetic oil and reducing the oil change interval to 10,000 miles (from the often-recommended 12,500 or 15,000) can slow the rate. For engines burning oil more aggressively, a compression test and a leak-down test will identify whether the issue is rings, valve seals, or turbo seals. Piston ring replacement is engine-out work and costly, so this is a situation where early diagnosis saves significant money.

Ford Focus 1.0 EcoBoost Loss of Power and Hesitation on Acceleration

This symptom is reported so frequently for the Focus specifically that it deserves its own section. Drivers describe a flat spot or hesitation when pulling away from junctions or when the engine is asked to deliver power from below 2,000 RPM.

Symptoms to watch for:

A noticeable delay between pressing the accelerator and the car responding. Intermittent juddering at low speed in higher gears. The issue may come and go, sometimes disappearing entirely on longer drives.

Why it happen:

In many cases, the throttle body accumulates carbon deposits that interfere with the precise airflow metering the engine's ECU expects. A failing or contaminated MAP (manifold absolute pressure) sensor or a split or disconnected vacuum hose can also produce similar symptoms. On Focus models with the Powershift DCT transmission, hesitation can be a gearbox issue rather than (or in addition to) an engine problem, making proper diagnosis critical.

The fix:

Clean the throttle body with a dedicated throttle body cleaner and reset the adaptive values via a diagnostic tool. Inspect all vacuum hoses and connections, paying particular attention to the breather valve (also known as the PCV or crankcase ventilation valve), which is a known weak point. Replace the MAP sensor if diagnostics show implausible readings. If the problem is DCT-related, that is a separate (and well-documented) issue requiring gearbox-specific attention.

P130D Fault Code

The diagnostic trouble code P130D relates to a cylinder head temperature sensor or coolant temperature issue and appears frequently on the 1.0 EcoBoost across multiple Ford models.

Symptoms to watch for:

Engine management light on with P130D stored. Reduced engine performance (limp mode). The cooling fan is running constantly. Inaccurate temperature gauge readings.

Why it happens:

The cylinder head temperature sensor can fail or give erratic readings due to connector corrosion, wiring harness damage, or a genuinely overheating condition caused by the coolant issues described earlier in this article.

The fix:

Diagnose before replacing parts. Check the sensor connector for corrosion and clean it. Test the sensor's resistance values against Ford's specification. If the sensor is faulty, replacement is inexpensive and straightforward. If the sensor is reading correctly and the engine is genuinely running hot, address the root cause (coolant system integrity) before clearing the code.

Ford 1.0 EcoBoost Engine Life Expectancy

With proper maintenance and timely attention to the issues above, the Ford 1.0 EcoBoost is capable of exceeding 150,000 to 200,000 miles. The engines that fail early are almost always the ones where coolant loss was ignored, the timing belt service was skipped, or oil changes were stretched too far. The engine's fundamental design is sound. Its weak points are well understood at this stage, and addressing them proactively transforms it from a liability into a genuinely capable and efficient powertrain.

Has Ford Fixed the EcoBoost Problems?

Ford has made iterative improvements across production years. The most significant changes include a revised coolant system with improved hose connections and degas bottle materials (from around 2016 onwards), updated turbocharger components with improved wastegate durability, revised timing belt specifications on later models, and software updates to the engine management system that better monitor coolant levels and temperature. The MHEV (mild hybrid) variants of the 1.0 EcoBoost introduced in 2020 also incorporate further refinements. While no engine is completely immune to problems, a 2020 or later 1.0 EcoBoost is measurably more reliable than the 2012 to 2015 equivalents.

Preventive Maintenance Schedule for the 1.0 EcoBoost

Keeping this engine healthy comes down to a handful of disciplined habits. Check the coolant level every two weeks and investigate any drop immediately. Change the engine oil every 10,000 miles or 12 months using 5W-20 fully synthetic oil that meets Ford's WSS-M2C948 specification. Replace the spark plugs every 30,000 to 37,500 miles. Service the timing belt and water pump at 100,000 miles or 7 years. Inspect the turbocharger and intercooler piping for leaks or splits during every service. Clean the throttle body at every second service or annually if you drive primarily short distances. Use quality fuel from a top-tier supplier and add a fuel system cleaner every 5,000 miles.

When to Walk Away from a 1.0 EcoBoost

If you are considering buying a used car with the 1.0 EcoBoost, walk away if the coolant level is low and there's no service record explaining why. Walk away if there is mayo-like residue under the oil filler cap (indicating coolant-in-oil contamination). Walk away if the timing belt replacement cannot be documented and the car is past 100,000 miles or 7 years. Walk away if the engine misfires during a test drive and the seller attributes it to "just needing a service." These are warning signs that the expensive problems may have already taken hold.
